NFPA Fire Protection Tanks: Full Breakdown of NFPA 22 Rules

Fire protection is a critical component of safety planning for commercial, industrial, and residential properties. The increasing frequency and severity of fire-related events have brought renewed focus on adopting proven standards. This is where the National Fire Protection Association (NFPA) becomes essential. Their suite of fire safety standards offers a consistent, code-based framework to ensure adequate protection against fire-related threats.

Water tanks play a central role in many fire suppression systems. This is especially the case when the municipal water supply is unreliable or insufficient. NFPA 22 serves as the cornerstone standards for ensuring that these water tanks are properly installed and regularly maintained to function when needed most.

Our guide aims to provide a thorough yet accessible breakdown of NFPA 22 for water storage tanks. We’re helping building owners, facility managers, safety consultants, and insurers understand when and how compliance applies, and what it takes to meet these critical requirements.

What is the NFPA?

General Requirements of NFPA 22 for Fire Protection Water Tanks: Chapter 4 Highlights

The chapter outlines the general requirements to be met for a water tank to qualify under fire protection standards. These principles ensure consistency, safety, and functionality across various tank installations.

1. Capacity and Elevation (4.1)
   The required water tank size for fire protection and its elevation must be tailored to each property’s needs. Considerations include, hydraulic demand, pressure zones, and accessibility. While NFPA 22 does not prescribe fixed sizes, it requires calculations based on flow duration and required pressure.


2. Water Sources (4.2)
   Fire protection tanks must be supplied by a dependable and sustainable water source. If the municipal source fails to meet the demand in quality, quantity, or pressure, an alternative—typically an onsite tank—must be used. This ensures readiness during peak usage or supply failure.


3. Location of Tanks (4.3)
   Water storage tanks must be sited in a way that minimizes exposure to potential fire threats. NFPA 22 specifies clearances and placement criteria to safeguard both the tank and the protected structure. For instance, fire tanks should not be located next to potential ignition sources or vulnerable construction zones.


4. Tank Materials (4.4)
   Acceptable materials include steel, wood, concrete, fiberglass-reinforced plastic, and coated fabrics. Each material must conform to mechanical, chemical, and national strength standards outlined in NFPA 22.


5. Workmanship and Plans (4.5 – 4.6)
   All manufacturing and assembly must adhere to industry best practices. Contractors must provide stress sheets, detailed layout plans, and maintenance instructions to local authorities or the AHJ.


6. Contractor Responsibility and Testing (4.7 – 4.10)
   Upon installation, firefighting water tanks must be tested for watertightness and strength. The contractor is responsible for cleanup, inspection coordination, and ensuring compliance with NFPA 241 for site safety.


7. Other Provisions (4.11 – 4.16)
    This includes provisions for:Attachments (flagpoles, signage)


• Lightning protection per NFPA 780
• Structural load calculations (live, wind, seismic)
• Welding standards (per ASME and AWWA D100)
• Roofing and venting to prevent pressure-related failures
• Record-keeping of test reports and compliance certifications

Together, these guidelines form the fundamental compliance backbone for all fire protection water tanks governed by NFPA 22.

NFPA 22 Design, Installation, and Engineering Considerations

Beyond general requirements, NFPA 22 dives deep into engineering specifications that ensure the tank will withstand environmental, structural, and operational stressors. Load Requirements

According to NFPA 22 Section 4.12, fire protection water storage tanks must be designed to handle:

• Dead load (tank weight and fittings)
• Live load (maximum water capacity, even if overflowing)
• Wind and seismic loads (30 lb/ft² for vertical surfaces)
• Platform and ladder loads, ensuring OSHA compliance
• Combined stress limits, especially during events like earthquakes

Welding and Structural Integrity

All welding must be conducted in accordance with the ASME Boiler and Pressure Vessel Code, AWWA D100, and NFPA 241. This ensures the joints and seams remain structurally sound during pressurization or environmental stress.

Roofing and Vents

All storage tanks for fire suppression are required to have roofs that can withstand:

• Installation and inspection weight
• Maintenance and cleaning operations

Additionally, NFPA 22 mandates venting systems above the max fill line, equipped with corrosion-resistant screens to prevent contamination.

Engineering Documentation

To comply with NFPA 22, fire protection tanks vendors must supply:

• Engineering stress sheets
• Installation guides
• Tank-specific maintenance plans
• Certifications for third-party inspections and approvals

These engineering elements reinforce the purpose of NFPA 22: not just to store water, but to ensure reliability during fire emergencies.

NFPA 25: What It Is and Why It Matters in Fire Protection

While NFPA 22 governs the initial installation and construction of fire water tanks, NFPA 25 ensures those systems remain operational over time. Officially titled Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, NFPA 25 is essential for long-term reliability. Scope and Purpose NFPA 25 establishes the minimum requirements for periodic inspection, testing, and maintenance (ITM) of systems such as:

• Sprinkler systems
• Fire pumps
• Standpipes
• Private mains
• Water storage tanks

These systems, once installed under NFPA 22, are subject to routine evaluations as defined in NFPA 25.This ensures they remain functional and ready during a fire event.

Importance of Maintaining Fire Protection Water Tanks

Even the best-designed tank can fail without proper upkeep. Through structured protocols for monthly, quarterly, and annual inspections, NFPA 25 helps property owners detect:

• Corrosion and sediment accumulation
• Valve malfunctions
• Pressure issues
• Signs of physical wear or leaks

Failing to comply with NFPA 25 can result in system failure during emergencies and might void insurance coverage or local occupancy permits.

NFPA 22 vs. NFPA 25: Understanding the Differences

Although they are both published by the National Fire Protection Association, NFPA 22 and NFPA 25 serve distinct but complementary purposes.

NFPA 22 is proactive—ensuring that systems are correctly designed and installed from the outset. NFPA 25, on the other hand, is ongoing—ensuring those systems remain reliable and ready.

Compliance Triggers: When is NFPA 22 Required?

Not every property automatically falls under NFPA 22 mandates—but many common building scenarios do. Knowing when the standard becomes mandatory can help avoid violations, denied insurance claims, or costly retrofits.

NFPA 22 Compliance Triggers:

• New Construction: Most new commercial or industrial buildings must include a fire water storage tank if municipal water supply is insufficient. NFPA 22 ensures that the tank is designed and installed to code.
• Major Renovations: Upgrading a building’s fire protection system? A new or updated tank will likely need to meet NFPA 22 standards.
• Change in Use or Occupancy: Converting a warehouse into residential units or repurposing a facility may require fire protection upgrades, triggering NFPA 22 compliance.
• Insurance or AHJ Mandate: Many insurers or authorities having jurisdiction (AHJs) require NFPA 22-certified tanks for policy approval or occupancy permits.

Tank Types and Materials Allowed by NFPA 22

NFPA 22 permits a variety of materials and tank types, depending on environmental conditions, project requirements, and local code mandates. The 2023 edition of NFPA 22 outlines approved materials and their performance standards under Section 4.4 and subsequent chapters.

Approved Tank Materials:

• Steel: Most common due to its strength and durability. Must meet national mechanical and metallurgical standards. Our NFPA 22 approved steel fire protection tanks meet all the standards for mid-sized to bulk fire protections units.
• Concrete: Used for large-scale applications, often where seismic requirements are high.
• Wood: Less common but still approved, typically for certain gravity tanks in rural or historic settings.
• Fiberglass-Reinforced Plastic (FRP): Offers corrosion resistance and is lightweight, suitable for some commercial and industrial uses. We offer reliable underground and above ground fiberglass water tanks approved for fire suppression systems.
• Coated Fabrics: Used in embankment-supported suction tanks and temporary systems.

Types of Tanks Covered by NFPA 22:

If interested in learning more about the best water storage tanks for fire protection, we have you covered. Below, we break down the NFPA approved tank options:

• Gravity Tanks: Elevated to provide hydrostatic pressure.
• Suction Tanks: Ground-level tanks that feed fire pumps.
• Pressure Tanks: Sealed tanks pressurized with air to deliver water instantly upon demand.
• Bolted Steel Tanks: Factory-coated and assembled onsite.
• Embankment-Supported Tanks: Flexible bladder water tanks with protective berms.

Plastic Tanks for Fire Protection Systems:

Whereas plastic is not a featured material in NFPA’s approved list, many businesses and homeowners find this a cost-effective option for fire defense. Plastic water storage tanks for fire suppression offer an appealing and readily-available option for integrating into fire fighting systems. Whether acting as the main water storage source or a supplementary source of water, you can consider our plastic fire suppression readiness tanks in your fire planning strategy.

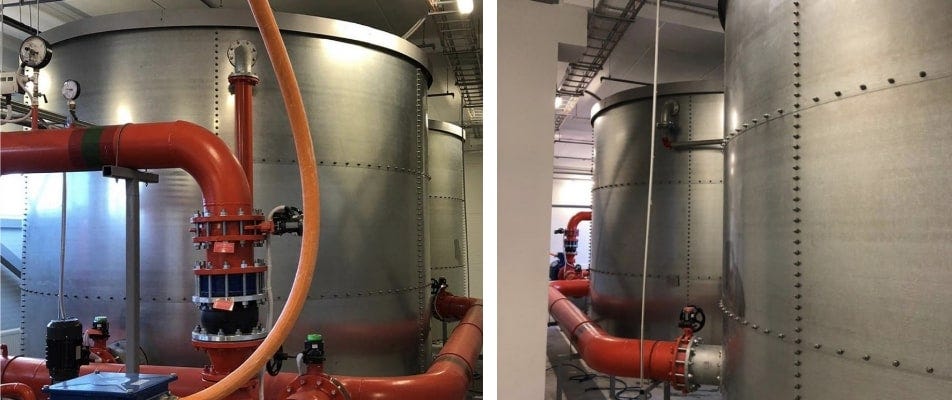

How to Evaluate Your Property’s Water Supply Needs

Determining whether you need a fire protection tank—and what size—is not just a matter of preference. It’s a compliance and safety decision driven by NFPA 22, local codes, and engineering assessments.

Step 1: Assess Municipal Water Supply

Start by checking if your municipal system can provide the:

• Required flow rate
• Minimum pressure
• Duration of supply during fire events

If the supply falls short in any of these areas, NFPA 22 typically mandates the addition of a supplemental fire protection tank.

Step 2: Define Tank Sizing Parameters

NFPA 22 Section 4.1 states that tank capacity and elevation must reflect actual fire demand. This includes:

• Building size and use
• Number and type of sprinklers
• Duration the system must sustain (usually 30–90 minutes)

Many vendors offer pre-engineered tanks ranging from 5,000 to 1,000,000 gallons, with custom options for unique site requirements.

Step 3: Consider Redundancy and Refill Time

Per NFPA 22 Section 4.2, the water source must be “adequate and dependable.” Even if a public water main exists, a backup tank may be required to meet the redundancy requirements for critical infrastructure, remote sites, or industrial zones. Evaluating your fire water needs using NFPA 22 guidelines ensures your system performs when seconds matter most.

Ensuring NFPA Compliance: Legal and Insurance Implications

Beyond fire safety, compliance with NFPA 22 and NFPA 25 has serious legal and financial consequences. Non-compliance can not only endanger lives but also lead to penalties, denied insurance claims, and loss of operational licenses.

Regulatory Oversight

• Authorities Having Jurisdiction (AHJs) enforce fire code compliance during construction, renovation, and occupancy.
• Many municipalities adopt NFPA 22 and NFPA 25 needs into local codes, making them enforceable by law.
• During plan review, site inspections, or audits, failure to comply may result in stop-work orders or occupancy denial.

Insurance Requirements

• Insurers may require NFPA 22-certified tanks as a precondition for coverage, especially in areas with unreliable water supply.
• NFPA 25 compliance is often linked to maintaining premiums or proving due diligence in risk reduction.
• If a fire-related claim is filed and tank systems are found non-compliant, coverage may be reduced or denied.

Legal Liability

Failure to meet NFPA standards can expose property owners to lawsuits in the event of injury or loss. Codes like NFPA 25 establish a clear standard of care. That means, the code can be referenced in legal proceedings to determine negligence. In short, complying with NFPA 22 and NFPA 25 is not just smart—it’s essential for protecting your investment, operations, and legal standing.

Cost Factors and Vendor Selection for NFPA-Approved Water Tanks

When planning for fire protection infrastructure, understanding the cost variables of an NFPA 22-compliant tank is essential. These systems represent a significant investment, and the cost goes beyond the tank itself.

Key Cost Considerations:

• Tank Size & Capacity: Naturally, larger tanks cost more. Standard volumes range from 5,000 gallons to over 1 million gallons, with costs scaling accordingly.
• Material Type: Steel tanks are often more expensive than fiberglass-reinforced or coated fabric options. Each material brings different strengths and cost implications.
• Installation Complexity: Remote sites, seismic zones, or constrained urban spaces may require additional engineering, site prep, or seismic anchoring—affecting the final cost.
• Accessories: Vents, ladders, roof railings, heating systems, and overflow protection are all required by NFPA 22, and their inclusion impacts the total investment.
• Engineering & Permits: Structural engineering reports, drawings, and local code approvals are necessary to comply with NFPA 22 Sections 4.6 and 4.7, and they typically involve consulting fees.

Vendor Selection Tips:

Choosing the right vendor is as important as choosing your fire protection water storage tank. Look for suppliers who:

• Certify their tanks to NFPA 22 standards
• Provide turnkey installation, including permitting support and on-site testing
• Offer maintenance plans that align with NFPA 25
• Include warranties of at least one year, or longer for residential and commercial applications

A reputable vendor will also supply test reports, certification documents, and layout plans to satisfy both AHJs and insurers.

Common Misconceptions on NFPA Requirements for Fire Protection Tanks

Despite being well-documented, NFPA 22 and NFPA 25 are often misunderstood. Let’s address some of the most common misconceptions: “

Any water tank can be used for fire protection”

False. Only tanks that meet the design, material, and installation guidelines of NFPA 22 are acceptable. Using a non-compliant tank can result in system failure or denied insurance claims.

“NFPA inspections are a one-time thing.”

Wrong. While NFPA 22 governs installation, NFPA 25 mandates ongoing monthly, quarterly, and annual inspections. These are not optional—they are essential.

“Once the tank is installed, we’re compliant forever.”

Not quite. Compliance is ongoing. If an inspector finds corrosion, leaks, or other issues, your tank can be deemed non-compliant under NFPA 25, even if it was properly installed.

“NFPA standards are suggestions, not requirements.”

This is misleading. While the NFPA doesn’t enforce the codes directly, many jurisdictions adopt NFPA standards into law, making them legally binding. Insurers also treat them as mandatory. Clearing up these misconceptions is key to helping property managers and owners take proactive steps toward true NFPA compliance.

How to Maintain NFPA Compliance Long-Term

Long-term adherence to NFPA regulations for fire prevention isn’t hard—but it requires a strategic and consistent approach.

Step 1: Set an Inspection Calendar

Using the schedule outlined in NFPA 25, create a calendar that covers:

1. Monthly visual checks

2. Quarterly valve testing

3. Annual tank inspections

4. Five-year internal tank evaluations

Automate reminders and assign responsibilities internally or to a contracted provider.

Step 2: Maintain Records

Keep all inspection logs, test results, and maintenance records easily accessible. These may be requested by:

• Insurance adjusters
• Local fire marshals
• AHJs

Failure to produce documentation may result in fines or non-compliance citations.

Step 3: Partner With Qualified Inspectors

Work with contractors certified in NFPA 25 inspections. They should:

• Know local codes
• Understand NFPA-specific criteria
• Provide written reports and deficiency notices

Step 4: Plan for Repairs and Replacements

Budget for periodic upgrades or repairs. Liners, ladders, heating elements, and even full tank replacements may be required over time. Using the original NFPA 22 design documentation, plan proactive maintenance instead of waiting for failure. Incorporating these steps ensures you remain in full compliance with NFPA, avoid legal or insurance issues, and—most importantly—protect lives and property.

Be Proactive in Your Fire Defense Strategy

Peace of mind starts with compliance. Whether you're designing a new system or maintaining an existing one, investing in NFPA-certified tanks and inspection programs is a proactive step toward real protection. We also encourage the adoption of approved firefighting water pumps to ensure water storage meets delivery when most needed.
