How to Prevent a Water Tank from Freezing in Winter: Effective Insulation and Heating Solutions

Quick Answer: To prevent an aboveground water tank from freezing, maintain continuous water movement, apply fitted electric tank heating blankets, insulate exposed pipework with closed-cell elastomeric foam and heat trace cables, and install external tie-downs designed for regional snow load and wind anchoring.

As temperatures drop during winter months, preventing water tanks from freezing becomes a critical task for homeowners and businesses alike. The formation of ice in water tanks can lead to significant problems, including damage to the tank, compromised water supply, and costly repairs.

This guide delves into effective strategies for preventing water tank freezing through insulation and heating solutions. You will learn which tank types are most vulnerable, which insulation methods hold up in the cold, which heating options work best, and how to winterize the right way. By understanding how to protect water storage systems, you can ensure reliable access to water throughout the winter.

Why Aboveground Storage Tanks Freeze (and How Geometry Dictates Heat Loss)

Aboveground polyethylene and steel storage tanks lose thermal energy primarily through atmospheric convection across the sidewalls and roof surface. Because static liquid has poor internal thermal conductivity, ice crystals initiate at the liquid-air interface and outer tank perimeter before migrating inward. The rate of freeze is governed by ambient temperature, wind exposure, cycle frequency (how often cold water is replaced with warmer incoming ground supply), and the tank’s surface-area-to-volume ratio:

• Large Vertical Water Tanks (>1,000 Gallons): Possess higher thermal mass, resisting complete freezing over short cold snaps if insulated and continuously cycled.
• Low-Profile / Doorway / Small Storage Tanks (<500 Gallons): Feature high surface-area-to-volume ratios, making them susceptible to rapid thermal loss within 12 to 24 hours of sub-freezing exposure.
• Installing underground water tanks below the local frost line provides natural geothermal insulation against freezing, making them less prone to ice formation during harsh winters.

Active vs. Passive Freeze Prevention Systems: What Are the Best Water Tank Insulation Methods to Prevent Freezing?

Selecting between active heating and passive thermal retention depends on minimum winter design temperatures and whether the tank is installed in continuous commercial use or intermittent storage.

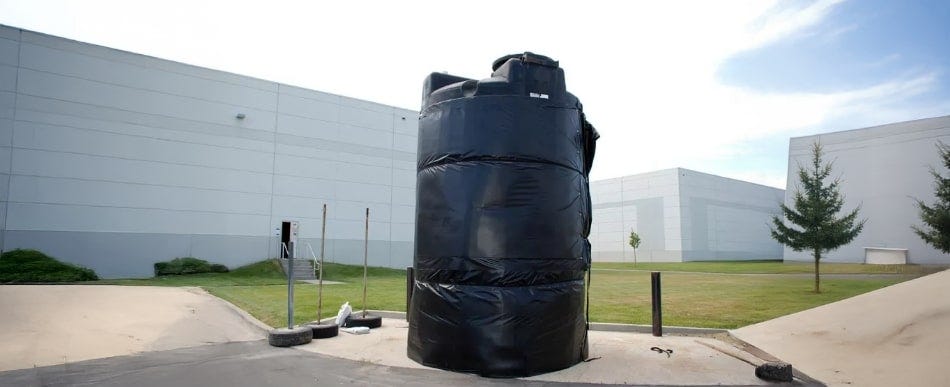

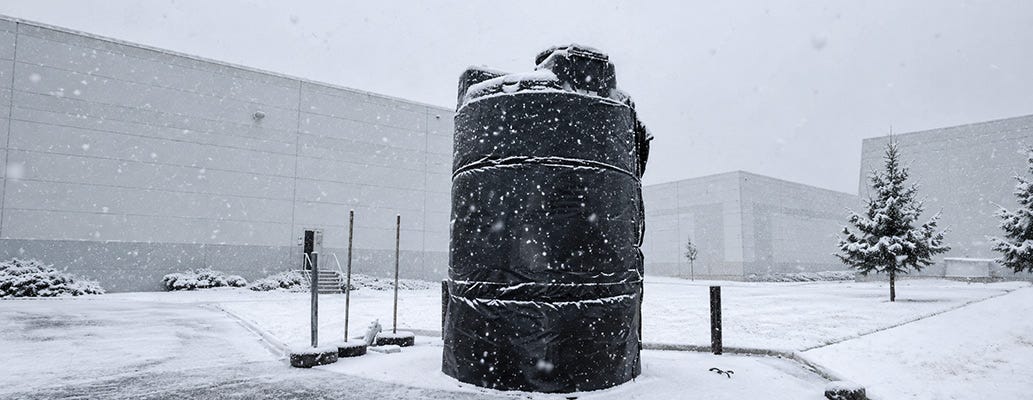

Electric Tank Heating Blankets (Active Thermal Control)

Electric heating blankets provide uniform surface heat distribution directly to the tank wall, preventing localized hotspots that can damage polyethylene vessels.

• Preset internal thermostats maintain liquid temperature between 40°F and 50°F.
• Silicone-band or heavy-duty insulated vinyl blanket wraps reduce heat loss to the surrounding ambient air.
• Explore commercial-grade sizing at Tank Depot Tank Heating Blankets.

Tank heating blankets or jackets are a dependable choice, delivering uniform warmth around the tank wall. Tank Depot carries sized options for common vertical tanks, including 1,000-gallon vertical tank heaters and 3,000-gallon vertical tank heaters, so you can match the blanket to your tank rather than improvising a fit. For larger installations, our full-coverage 5,000-gallon heater wraps a 5,000 gallon tank body for even heat distribution in sub-zero conditions.

Factory-Applied PU Foam Insulation & Heat Trace (Industrial Grade)

For large vertical storage tanks (1,000 to 18,800 gallons) and double-wall containment vessels (550 to 12,500 gallons), factory-applied insulation provides superior thermal retention compared to aftermarket wraps:

• 2" Polyurethane Foam Insulation: Factory-applied 2-inch rigid PU foam provides high thermal resistance (R-16 equivalent).
• Weather-Resistant Mastic Seal: Coated with two full-coverage layers of UV-resistant latex mastic (gray or white) to seal the foam against weather degradation.
• Integrated Thermolar® Heat Trace Systems: Factory-installed heating panels embedded directly under the 2" foam layer, pre-wired to a NEMA control box. Requires only 120VAC supply power on-site.
• Engineering & Dimensional Note: Adding factory polyurethane foam insulation increases the total outer diameter of vertical tanks by 4 to 6 inches. Ensure pad sizing, containment berms, and doorway clearances account for this added width. Stored liquid temperatures in heat-traced poly tanks must not exceed 100°F.

Best Winterizing Practices for Aboveground Water Tanks

To ensure reliable water access during winter, several best practices can be adopted for winterizing water tanks:

1. Keep Water Moving: Moving water is less likely to freeze. Utilizing pumps or aerators can prevent stagnation in tanks.
2. Regular Inspections: Inspecting tanks regularly can help confirm system integrity and identify potential problems before they escalate.
3. Elevate Tanks: Slight elevation can minimize cold wicking from the ground, which often contributes to freezing in the lower parts of the tank.

What Types of Water Tanks Are Most at Risk of Freezing Outdoors?

The risk of freezing in outdoor water tanks varies significantly based on tank materials.

• Polyethylene Tanks: They tend to retain heat effectively but often require additional insulation to guard against extreme cold.
• Steel Water Tanks: While sturdy, they usually need coatings or insulation to withstand low temperatures and resist ice damage.
• Fiberglass Water Tanks: These tanks are resistant to freezing but still require proper care, particularly in extreme climates. If you are using non-polyethylene material, review our guide on the temperature limits of fiberglass storage tanks.

Plumbing, Valving, and Pipework: The Vulnerable Failure Points

In 90% of freeze-related tank failures, structural failure occurs in the external plumbing, ball valves, and outlet fittings rather than the main tank body. Water expands by approximately 9% upon freezing, generating hydrostatic pressures exceeding 20,000 PSI inside rigid piping. Essential Pipe Freeze-Proofing Protocol:

1. Self-Regulating Heat Trace Cable: Run self-regulating heating cable along the underside of horizontal pipe runs and wrap around brass/poly valves.
2. Closed-Cell Insulation: Encase all exposed pipework in minimum 1/2" to 1" thick closed-cell polyethylene or elastomeric foam insulation with UV-resistant jacketing.
3. Internal Freeze-Protection Relief Valves: Install thermal relief valves that purge small amounts of near-freezing water to induce flow when line temperatures approach 35°F.

RV Holding Tanks: Winterization & Freeze Prevention

RV holding tanks freeze when static wastewater sits in unheated underbellies; protect them by installing 12V adhesive heating pads, enclosing and heating the underbelly compartment, keeping waste valves closed until dumping, and insulating termination pipes. Unlike large municipal or industrial vertical tanks, RV fresh, grey, and black water tanks are shallow and feature minimal thermal mass.

Core RV Cold-Weather Protection Steps:

• 12V / 120V Dual-Voltage Tank Heating Pads: Adhere electric heat pads directly to the bottom third of the RV holding tank.
• Valves Closed Policy: Never leave RV black or grey termination valves open with exposed drain hoses in freezing weather. Ice dams form rapidly in standard ribbed sewer hoses.
• Skirting and Underbelly Enclosures: Install insulated RV skirts around the vehicle perimeter to block wind chill and maintain ambient temperatures above 32°F below the floor.
• Browse replacement holding tanks at Tank Depot RV & Marine Tanks.

Engineering Note on RV Tank Heating: When applying adhesive heating pads to rotational molded polyethylene RV holding tanks, verify the heating element includes an integrated 45°F/68°F thermal switch to prevent element burnout when tanks are drained dry.

How Do Different Water Tank Materials Affect Freeze Risk?

Different materials directly impact how effectively a water tank can avoid freezing. Metal tanks, for instance, conduct cold more easily than insulated plastic tanks, making them more vulnerable in frigid conditions. Additionally, tanks with inadequate insulation will struggle to maintain temperature during drastic weather changes, thereby increasing the freeze risk.

What Maintenance and Monitoring Practices Ensure Freeze Protection?

Regular maintenance and monitoring are pivotal in ensuring that water tanks remain secure during winter. This involves:

1. Scheduled Inspections: Regular checks for any signs of wear, leaks, or damage can help maintain system integrity.
2. Adjust Heating Settings: Ensuring heating solutions work optimally by checking their settings and efficiency.
3. Insulation Checks: Regularly inspecting insulation for any signs of damage or degradation to ensure lasting effectiveness.

Structural Snow Load & Wind Anchoring Considerations

Heavy winter snow loads increase dome stress on large outdoor tanks while seasonal wind shears can destabilize partially filled vessels; secure outdoor tanks using engineered seismic/wind tie-down restraint systems anchored to a certified concrete pad. Winter conditions introduce external structural forces that must be accounted for beyond interior freezing:

Structural Sign-off Callout: Standard vertical poly tanks are engineered for self-supporting domes under standard atmospheric conditions. When installed in regions with ground snow loads exceeding 30 PSF or sustained winter wind speeds exceeding 90 MPH (ASCE 7 standards), external restraint tie-down kits and reinforced roof designs must be verified against manufacturer engineering specifications.

How Often Should You Inspect and Winterize Your Water Tank?

It is recommended to inspect and winterize water tanks at least once a month during the winter season. Early identification of potential issues can save on larger repairs and ensure that water remains available when needed.

Can Smart Freeze Sensors Help Detect and Prevent Tank Freezing?

Smart freeze sensors play a supportive role in monitoring temperature fluctuations in water tanks. These sensors can send alerts to users when temperatures drop to critical levels, providing an opportunity to implement preventative measures before serious freezing occurs.

What Emergency Measures Help Protect Water Tanks During Severe Winter Weather?

In severe winter conditions, immediate actions can help protect water tanks. Including:

1. Temporary Heating Solutions: Utilize portable heaters or blankets to provide extra warmth during sudden cold snaps.
2. Insulation Enhancements: Adding supplemental insulation around tanks can further protect against severe temperatures.
3. Cover Tanks: Where possible, cover exposed tanks to reduce wind chill effects.

How to Create an Emergency Freeze Prevention Plan for Water Storage?

Creating an emergency freeze prevention plan can streamline your response to unexpected weather changes.

1. Develop Protocols: Outline clear steps to take when freeze alerts are triggered.
2. Assign Responsibilities: Assign personnel or designate responsibilities for monitoring and responding to issues.
3. Regularly Review and Update: Ensure the plan is reviewed regularly and adjusted based on past experiences and current conditions.

Tank Freeze-Protection Sizing Reference

What Are Quick DIY Fixes When Water Starts to Freeze?

In the event of early signs of freezing:

1. Increase Water Movement: Utilize a pump to circulate water and reduce the potential for freeze formation.
2. Apply Temporary Heating: Use portable heaters or warming wraps to generate heat around the affected area.
3. Add Insulation: Quick insulation fixes can be applied using blankets or foam to shield against immediate freezing risks.

For industrial or agricultural fluids, ensure you follow best practices for storing chemicals safely in freezing weather. By following these solutions and strategies, you can effectively ensure that your water tanks remain operational throughout the winter season, safeguarding your water supply from freezing challenges.

Not sure which tank winter protection method is ideal for your setup? Contact our qualified tank experts today for personalized guidance on selecting the right heating blankets and freeze prevention solutions for your water storage system.
