How Does a Septic System Work? Complete Septic Tank Diagram
A septic system is a reliable solution for wastewater management in homes without access to municipal sewer systems. But how exactly does it work, and why is it so important to maintain? Let’s dive into the process, the components, types, and the care that keeps a septic system functioning smoothly for years to come.
What Is a Septic System and How Does It Work? A Diagrammatic Representation
A conventional septic system is an underground onsite wastewater treatment structure designed for homes in rural or remote areas where public sewer systems are unavailable. The system safely processes household sewage and wastewater, ensuring it doesn’t harm the environment or your property. Most systems consist of a concrete, plastic, or fiberglass septic tank and a leach field, working together to separate, treat, and safely dispose of waste.
Septic tanks are typically made of concrete, fiberglass, or plastic and can hold anywhere from 200 to 10,000 gallons of wastewater in complex setups. They operate using natural processes to break down solid waste, enabling the treated water to return safely to the environment.
How Does a Septic System Work? Septic Tank Diagram Overview
To get a better understanding of how a septic tank works, it's helpful to look at a septic tank diagram. The diagram will show the different parts of the septic tank and how they work together to treat wastewater.
When wastewater leaves your home, it flows through a main sewer pipe into the septic tank. Here’s what happens next:
1.Separation of Wastewater
Inside the septic tank, the wastewater separates into three layers:
- Sludge: Heavy solids sink to the bottom.
- Scum: Oils and grease float to the top.
- Effluent: The liquid layer between sludge and scum, which exits the tank for further treatment.
2.Effluent Treatment in the Drain Field
The effluent flows from the tank into the leach field (or drain field), a series of leaching chambers buried in trenches filled with gravel or sand. The soil naturally filters the effluent, breaking down harmful bacteria and nutrients before the water re-enters the groundwater.
3.Ongoing Decomposition
Inside the septic tank, anaerobic bacteria break down solid waste, reducing the volume of sludge and slowing the need for pumping.
This simple yet effective process ensures your home’s wastewater is treated safely, keeping both your property and the environment protected. The comprehensive septic tank diagram shows these how these parts work together in intricate detail..
Curious about how septic systems compare to traditional waste management methods? Learn the key differences between a cesspool and a septic system.
Key Components of a Septic System
Inlet Tee
The inlet guides wastewater into the tank, preventing sudden splashes that could disturb the settling process. It ensures smooth flow and maximizes the separation of solid waste from liquids. Most residential properties go for a 4” inlet tee for their septic tanks.
Septic Tank (Single or Double Compartment Septics)
The septic tank is the core of the system, where wastewater is stored and treated. Bacteria inside the tank break down organic matter in an oxygen-free (anaerobic) environment. However, some solids cannot be fully decomposed and require periodic pumping.
There are two main types of tanks:
- Single Compartment Septic Tanks: These tanks have one chamber for waste treatment. They are simpler but may require more frequent pumping since all separation occurs in the same space.
- Two Compartment Septic Tanks: These waste tanks divide the process into two stages. Solids settle in the first chamber, while the second chamber provides additional settling before effluent exits to the drain field. This design allows for more efficient waste processing by lowering the risk of solids flowing into the drain field,.and less frequent maintenance.
Selecting the right tank size is critical. A properly sized tank should be 2 to 3 times the average daily wastewater consumption to prevent overflow and ensure efficient treatment. The septic tank diagram above is an excellent representation of a two-compartment system.
Two-Tank Septic Systems
In some wastewater management setups, two separate tanks are used to handle different types of waste. While these tanks are not sold as a single system, they are components that can work together effectively depending on the needs of the property or application.
How Two-Tank Setups Work
Tank 1: Blackwater Tank
This tank is designed to store blackwater, which includes waste from toilets such as urine, feces, and water used for flushing. Blackwater tanks are often used in applications where handling and treatment of high-solid-content waste are prioritized.
Tank 2: Greywater Tank
This tank stores greywater, which comes from sources such as sinks, showers, or laundry. While greywater is less contaminated than blackwater, it still requires proper containment and treatment to prevent environmental hazards. Separating greywater reduces the burden on the blackwater tank and improves overall system efficiency.
In RVs and boats, a water storage tank provides fresh water, while a waste tank contains blackwater for proper disposal. These setups offer distinct advantages, such as better waste management by separating blackwater and greywater, reduced pumping frequency, improved system longevity, and flexibility to meet various needs.
Importantly, these tanks are sold as individual components rather than a pre-assembled system, allowing customization based on site requirements, application type, and capacity needs.
Outlet with Effluent Filter
The outlet tee ensures only liquid effluent leaves the septic system, preventing solids from entering the leach field and causing blockages. Regular cleaning or replacement of the effluent filter can extend the life of your system.Similar to the inlet tee, a 4”-sized outlet is more common in most residential properties.
Drain Field (Leach Field)
The drain field is where final wastewater treatment occurs. Effluent seeps through the gravel and soil, where natural bacteria filter and purify it before it reenters the groundwater system. A well-designed and maintained leach field can last for decades.
While some systems use perforated pipes to distribute effluent, we do not sell or recommend these. Instead, we offer leaching chambers, which are more efficient due to their high capacity and wider design. Leaching chambers provide superior treatment by allowing better infiltration and distribution of wastewater into the soil.
It's also important to note that each row of leaching chambers requires an end cap at both the beginning and the end to ensure proper function and containment of the effluent.
How to Estimate Your Average Wastewater Consumption and Choose the Right Septic Tank Size
Selecting the right septic tank size is essential for efficient waste processing and long-term maintenance. A septic tank that is too small may require frequent pumping, an average cost of $500 per septic pumping, while an oversized tank could lead to inefficiencies in waste breakdown. Our experts will guide you in selecting the pump that’s just right for your property.
Estimating Daily Wastewater Consumption
For residential properties, wastewater production varies based on the number of occupants and their daily activities. Here are some general estimates:
- The average person generates 50 to 70 gallons of wastewater per day.
- A common rule of thumb is to estimate 150 to 250 gallons per bedroom per day in a household.
Choosing the Right Septic Tank Size
A properly sized septic tank should be 2 to 3 times the daily wastewater consumption. For example:
- A 3-bedroom home producing 450 to 750 gallons per day would require a 1,000 to 1,500-gallon tank.
- A 4-bedroom home generating 600 to 1,000 gallons per day should have a 1,500 to 2,000-gallon tank.
By selecting the right tank size based on wastewater production, homeowners can prevent frequent maintenance issues, extend the lifespan of their system, and ensure efficient wastewater treatment for years to come.
Common Problems and Septic System Maintenance Tips
To keep your septic system functioning properly, regular maintenance is essential. Here are a few common issues and how to address them:
- Backups or Slow Drains: These can indicate a full tank or a clogged line. Schedule a professional septic tank inspection to diagnose the issue.
- Foul Odors: Often caused by system overload or improper venting. Avoid overloading the tank with excessive water or harmful chemicals.
- Leach Field Flooding: This may signal a failing field or improper drainage. Protect the area by keeping heavy equipment and vehicles off the drain field.
Maintenance Tips:
- Pump your tank every 3–5 years, or as recommended by a professional based on your household size and usage.
- Avoid flushing non-degradable items, grease, or harsh chemicals.
- Inspect your system regularly to identify problems early.
Single vs. Double Compartment Septic Tanks + Unconventional Septic Types
When choosing a septic tank, it’s essential to understand the difference between single and double-compartment tanks. That said, we highly recommend understanding your local regulations and codes on onsite wastewater treatment systems before selecting a septic tank type.
Types of Septic Tanks and Onsite Waste Treatment Systems

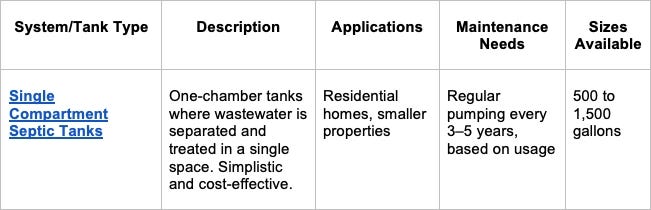

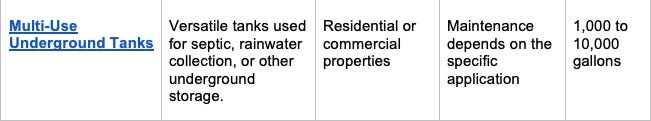

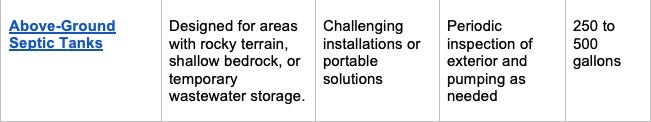

The Environmental Protection Agency recognizes the following main types of septic tank systems:
The right septic tank for you depends on your household’s size, water usage, and local regulations. Always consult with a professional before making a decision.
Why Proper Maintenance of Septic Tanks Matters
A neglected septic system can lead to costly repairs, property damage, and environmental hazards. By scheduling regular pumping, inspecting your system, and avoiding harmful practices, you can save money and ensure your system runs smoothly.
Tank Depot Offers Professional Septic Tank Systems
Understanding how the septic tank diagram works is key to protecting your home and the environment. From the way wastewater separates in the tank to the final filtration in the leach field, every part of the process is designed to safely manage waste. Our trained septic tank installers in Texas have an intricate understanding of
If you’re considering installing or upgrading your system, or need advice on maintenance, reach out to a trusted septic professional. A well-maintained system not only saves you money but also ensures long-term reliability.
What steps can you take today to ensure your septic system runs efficiently for years to come?
